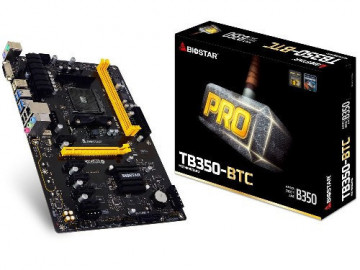

| MODEL |
TB350-BTC |
| CHIPSET |
AMD B350 |
| CPU SUPPORT |
Socket AM4 supports AMD A-Series APU/CPU
Maximum CPU TDP (Thermal Design Power) : 95Watt |
| MEMORY |
Supports Dual Channel DDR4 1866/2133/2400/2667
2 x DDR4 DIMM Memory Slot, Max. Supports up to 32 GB Memory
Each DIMM supports non-ECC & ECC 4/8/16 GB DDR4 module
* DDR4 - 2667 only for Ryzen CPU.
| Maximum |
DIMMA1 |
DIMMB1 |
| DDR4-2667 |
SR |
- |
| DDR4-2667 |
DR |
- |
| DDR4-2667 |
SR |
SR |
| DDR4-2400 |
DR |
DR |
SR:Single-rank DIMM, 1R x4 or 1R x8
DR:Dual-rank DIMMs, 2R x4 or 2R x8 |
| EXPANSION SLOT |
3x PCIe 2.0 x1 Slot
2x PCIe 3.0 x1 Slot (for Bitcoin mining, please change the speed to PCI-E 1.0 in BIOS setting)
1x PCIe 3.0 x16 Slot : When using APU or NPU, the bandwidth is x8 speed |
| STORAGE |
4x SATA III Connector (6Gb/s)
Supports AHCI & RAID 0, 1, 10 |

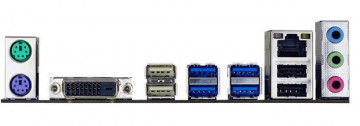

| USB |
6x USB 3.1 Gen1 (5Gb/s) port (4 on rear I/Os and 2 via internal headers)
6x USB 2.0 port (2 on rear I/Os and 4 via internal headers) |
| LAN |
Realtek RTL 8111H
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability |
| CODEC |
ALC887
7.1 Channels, High Definition Audio |
